STP / STEP Bend-Zone Repair

Repair tessellated bend zones in STP / STEP files exported from Tekla. Upload your files, run the repair, and download corrected geometry ready for downstream use.

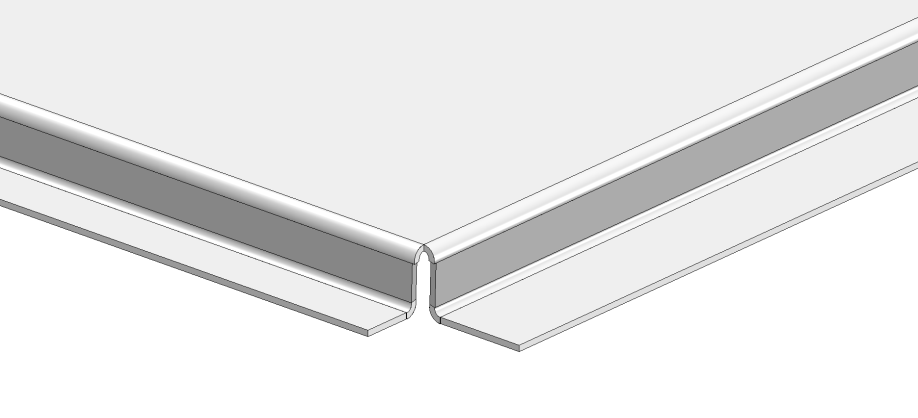

After — Drag the slider to compare the tessellated bend zone with the repaired geometry.

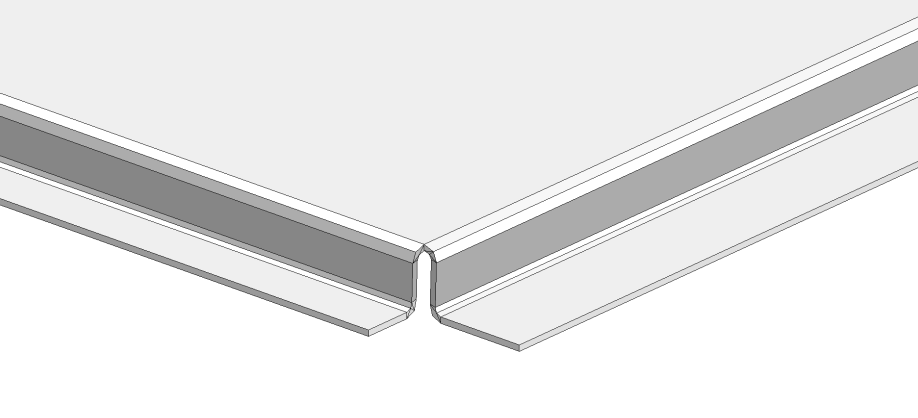

Before — Drag the slider to compare the tessellated bend zone with the repaired geometry.

Settings

Bend-zone front surface

No adjustment Front surface unchanged

Planar Front surface of bend zone vertical to axis

Hollow (outside) Connects both flanges; creates a convex front surface

Bulgy (inside) Connects both flanges; creates a concave front surface

Linear Connects both flanges; creates a planar front surface

More adjustment modes are coming soon — for now only "No adjustment" is available.

Drag and drop STP / STEP files here or

Browse files

Multiple files supported · .stp and .step

No files yet. Upload some STP / STEP files to get started.
